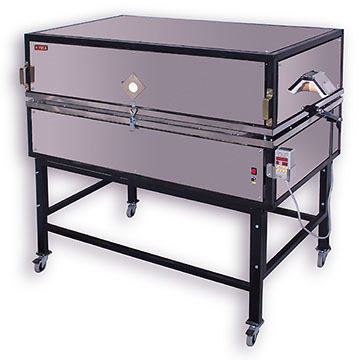

Electric glass
fusing furnace

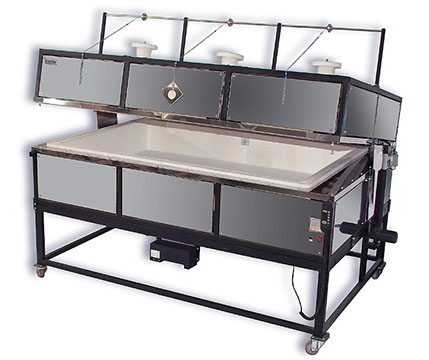

- GL V and GL VI have electric actuators opening and avtomatic cooling

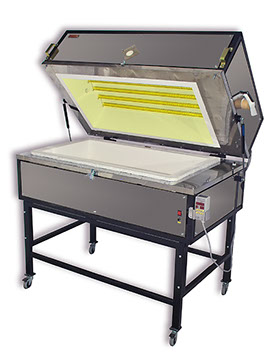

- GL III/1 has gas spring opening and avtomatic cooling
- High dentesity insulation guarantee low energy consuption and fast rise in temperature
- Door safety switch
- Robust casing
- Closable ventilation apertures on sides
- Microprocessor program controller
- Guarantee: 3 years
Volume
PIKA GL I
PIKA GL II
PIKA GL III
PIKA GL III/1
PIKA GL IV
PIKA GL V
PIKA GL IV
Inside dim. (cm) W x L x H
34 x 34 x 17
50 x 50 x 30
100 x 50 x 40
120x 80 x 40
160 x 100 x 40
203 x 103 x 40
215 x 115 x 50(27+23)
Outside dim. (cm) W x L x H
66 x 53 x 37
80 x 68 x 57
130 x 68 x 57
167 x 123 x 157
195 x 120 x 75
265 x 145 x 92
277 x 160 x 92
Max. temp. °C
950
950
950
950
950
950
950
kW
2
3,3
9
9-12
15
18
18-21
Volt
230
230
400
400
400
400
400
